How to troubleshoot an undercounter drink fridge not cooling?

As a supplier of undercounter drink fridges, I understand the frustration that comes with a fridge that's not cooling properly. It can disrupt your daily routine, especially if you rely on it to keep your beverages chilled. In this blog post, I'll guide you through the process of troubleshooting an undercounter drink fridge that's not cooling, providing you with practical steps to identify and resolve the issue.

1. Check the Power Supply

The first and simplest step is to ensure that your undercounter drink fridge is properly connected to a power source. A loose or faulty power connection can prevent the fridge from operating correctly.

• Inspect the Power Cord: Check the power cord for any visible damage, such as cuts or frayed wires. If you notice any issues, replace the power cord immediately.
• Verify the Outlet: Plug another device into the same outlet to confirm that it's working. If the other device doesn't work, check the circuit breaker or fuse box to see if the circuit has tripped. If so, reset the breaker or replace the fuse.
• Try a Different Outlet: If the outlet is not working, try plugging the fridge into a different outlet. Make sure the new outlet is properly grounded and rated for the fridge's power requirements.

2. Examine the Temperature Settings

Incorrect temperature settings can cause the undercounter drink fridge to not cool effectively. It's important to set the temperature to the appropriate level for optimal cooling.

• Refer to the Manual: Consult the user manual that came with your fridge to determine the recommended temperature settings. Different models may have different temperature ranges, so it's essential to follow the manufacturer's guidelines.
• Adjust the Temperature: Use the temperature control settings on the fridge to adjust the temperature. If the fridge is set too high, lower the temperature setting and wait a few hours to see if the cooling improves.

3. Clean the Condenser Coils

Over time, dust and debris can accumulate on the condenser coils, reducing their ability to dissipate heat and causing the fridge to work harder to cool. Cleaning the condenser coils can improve the fridge's cooling efficiency.

• Locate the Condenser Coils: The condenser coils are usually located at the back or bottom of the fridge. Refer to the user manual for the exact location.
• Unplug the Fridge: Before cleaning the condenser coils, unplug the fridge from the power source to avoid any electrical hazards.
• Use a Vacuum Cleaner or Coil Brush: Use a vacuum cleaner with a brush attachment or a coil brush to gently remove the dust and debris from the condenser coils. Be careful not to damage the coils.
• Replug the Fridge: Once the condenser coils are clean, plug the fridge back into the power source and allow it to cool for a few hours.

4. Check the Door Seals

A faulty door seal can allow warm air to enter the fridge, causing it to not cool properly. Inspect the door seals regularly to ensure they are clean, intact, and providing a tight seal.

• Look for Visible Damage: Check the door seals for any cracks, tears, or signs of wear. If you notice any damage, replace the door seals.
• Test the Seal: To test the seal, close the fridge door on a piece of paper. If you can easily pull the paper out, the seal is not tight enough. You may need to clean the seals or adjust the door hinges to improve the seal.
• Clean the Seals: Use a mild detergent and a soft cloth to clean the door seals. Make sure to remove any dirt, debris, or food particles that may be preventing the seals from making a tight contact.

5. Inspect the Evaporator Fan

The evaporator fan is responsible for circulating cold air throughout the fridge. If the fan is not working properly, the fridge may not cool evenly or effectively.

• Listen for the Fan: When the fridge is running, listen for the sound of the evaporator fan. If you don't hear the fan running, it may be faulty.
• Check for Obstructions: Inspect the evaporator fan for any obstructions, such as ice or debris. If you find any obstructions, carefully remove them.
• Test the Fan Motor: If the fan is not running and there are no obstructions, the fan motor may be faulty. You may need to replace the fan motor or contact a professional technician for assistance.

6. Evaluate the Compressor

The compressor is the heart of the fridge's cooling system. If the compressor is not working properly, the fridge may not cool at all.

• Listen for the Compressor: When the fridge is running, listen for the sound of the compressor. If you don't hear the compressor running, it may be faulty.
• Check the Compressor Temperature: The compressor should be warm to the touch when it's running. If the compressor is cold or extremely hot, it may be malfunctioning.
• Contact a Professional Technician: If you suspect that the compressor is faulty, it's best to contact a professional technician for further diagnosis and repair. Compressor repairs can be complex and may require specialized tools and knowledge.

7. Consider the Ambient Temperature

The ambient temperature in the room where the undercounter drink fridge is located can also affect its cooling performance. If the room is too hot, the fridge may have to work harder to maintain the desired temperature.

• Ensure Proper Ventilation: Make sure the fridge has adequate ventilation around it. Leave at least a few inches of space between the fridge and the walls, cabinets, or other objects to allow for proper air circulation.
• Avoid Placing the Fridge Near Heat Sources: Keep the fridge away from heat sources, such as ovens, stoves, or direct sunlight. These heat sources can increase the ambient temperature and make it more difficult for the fridge to cool.

Conclusion

Troubleshooting an undercounter drink fridge that's not cooling can be a frustrating experience, but by following these steps, you can often identify and resolve the issue on your own. However, if you're unable to fix the problem or if you suspect a more serious issue, it's always best to contact a professional technician for assistance.

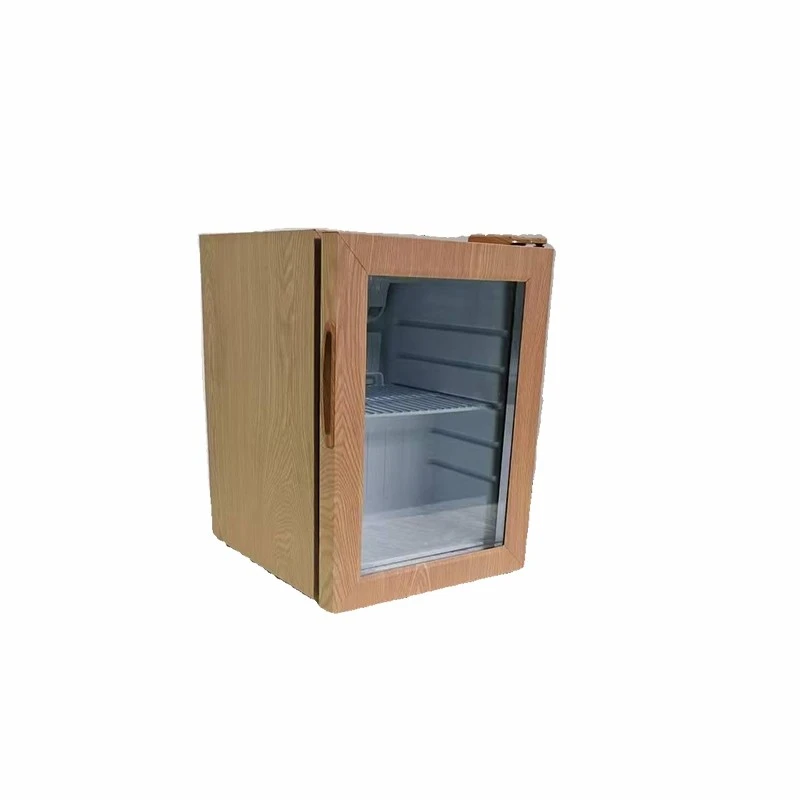

At our company, we offer a wide range of Under Cabinet Beverage Refrigerator and Undercounter Beverage Refrigerator that are designed to provide reliable and efficient cooling. If you're in the market for a new undercounter drink fridge or need help with your existing fridge, please don't hesitate to contact us. We're here to assist you with all your beverage refrigeration needs.
