Cake Display Refrigerator

COMMERCIAL REFRIGERATION EQUIPMENT

Cake Display Refrigerator Manufacturer

Cake Display Refrigerator is a commercial refrigeration system designed for cake storage, dessert merchandising, pastry preservation, and temperature-controlled food display in bakeries, cafés, hotels, dessert chains, supermarkets, and food retail environments. The equipment combines refrigerated storage and transparent product presentation to maintain product freshness while supporting front-of-house merchandising.

A cake display refrigerator typically consists of a refrigeration compressor system, evaporator, condenser, digital thermostat, insulated cabinet structure, tempered glass panels, LED lighting, stainless steel frame components, and adjustable display shelves. Common cabinet materials include stainless steel, coated steel sheet, aluminum alloy profiles, tempered double glass, and polyurethane insulation foam.

The system is designed to maintain stable cooling conditions for cream cakes, mousse cakes, cheesecakes, pastries, desserts, and refrigerated bakery products. Typical operating temperatures range from 2°C to 8°C to reduce moisture loss, prevent cream deformation, and minimize bacterial growth during continuous retail operation.

First 12 3 4 5 Last

Industry Keywords

Commercial Cake Display Refrigerator

Bakery Display Fridge

Refrigerated Cake Showcase

Pastry Display Refrigerator

Curved Glass Cake Display Cooler

Countertop Cake Display Fridge

Vertical Cake Display Refrigerator

Bakery Refrigeration Equipment

Dessert Display Chiller

Commercial Refrigerated Showcase

Product Types

1. Curved Glass Cake Display Refrigerator

Curved glass cake display refrigerators use bent tempered front glass to improve product visibility and customer viewing angles. These units are commonly used in bakery counters, dessert shops, and café service areas.

Typical specifications:

Temperature range: 2°C to 8°C
Glass structure: double tempered glass
Cooling type: ventilated cooling
Shelf layers: 2–4 layers
Length range: 900 mm to 2000 mm

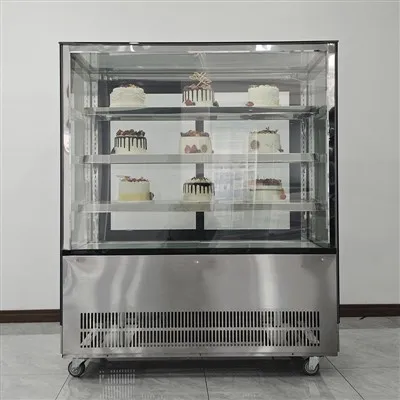

2. Square Glass Cake Display Refrigerator

Square glass display refrigerators use flat glass panels for simplified cleaning and modular installation. The structure is suitable for supermarkets and standardized food retail layouts.

Typical features:

Stainless steel internal structure
Rear sliding doors
Digital thermostat
LED internal lighting
Adjustable shelving system

3. Vertical Cake Display Refrigerator

Vertical cake display refrigerators increase display capacity while reducing floor space usage. The design is commonly used in coffee shops and compact retail environments.

Technical characteristics:

Multi-layer rotating shelves optional
360° product visibility
Forced air circulation
Compact footprint design
Typical height: 1200 mm to 1800 mm

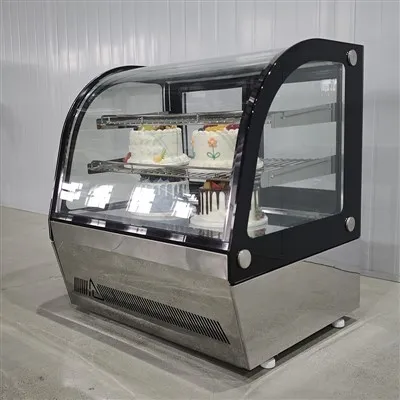

4. Countertop Cake Display Refrigerator

Countertop cake display refrigerators are designed for small-volume pastry display and front-counter operations.

Common specifications:

Capacity: 60L–150L
Power supply: 110V / 220V
Plug-in refrigeration system
Compact compressor structure

Technical Parameters

Parameter	Typical Range
Temperature Range	2°C to 8°C
Ambient Operating Temperature	16°C to 32°C
Refrigerant	R134a / R290 / R404A
Cooling Method	Ventilated / Static Cooling
Compressor Type	Hermetic Compressor
Insulation Material	Polyurethane Foam
Insulation Thickness	40 mm – 80 mm
Glass Type	Tempered Double Glass
Shelf Material	Stainless Steel / Glass
Voltage	110V / 220V / 380V
Frequency	50Hz / 60Hz
Noise Level	45–60 dB
Capacity Range	60L – 1500L

Applications

Bakery Retail Stores

Used for displaying cream cakes, cheesecakes, mousse cakes, and refrigerated pastries under controlled temperature conditions.

Coffee Shops

Integrated into beverage service counters for refrigerated dessert merchandising.

Hotel Buffet Areas

Used for pastry display in breakfast service zones and dessert stations.

Supermarkets

Applied in bakery sections for packaged cakes and chilled dessert products.

Dessert Chain Stores

Supports standardized product display across multiple retail locations.

Airport Food Service Areas

Used in high passenger traffic environments requiring continuous refrigeration operation.

FAQ

Q1: What temperature is recommended for cake storage?

Most cream cakes and pastries are stored between 2°C and 8°C to maintain texture and reduce bacterial growth.

Q2: What is the difference between ventilated cooling and static cooling?

Ventilated cooling uses forced air circulation for uniform temperature distribution. Static cooling produces lower airflow and may reduce surface drying for some pastry products.

Q3: Which refrigerants are commonly used?

Commercial cake display refrigerators commonly use R134a, R290, or R404A depending on regional regulations and cooling capacity requirements.

Q4: Can the display refrigerator operate continuously?

Commercial bakery refrigerators are designed for long-duration daily operation, including retail business hours and overnight cooling cycles.

Q5: How can glass condensation be reduced?

Anti-fog tempered glass, heated glass systems, proper humidity control, and stable ambient airflow help reduce condensation.

Technical Support & Inquiry

For bakery refrigeration system selection, cabinet dimension confirmation, cooling method comparison, refrigerant specifications, or electrical configuration support.
