Laboratory Medical Grade Deep Freezer

Laboratory Medical Grade Deep Freezer

| Chest Type -85°C | HeCool
Medical and laboratory grade -85°C deep chest freezer. 304 stainless steel interior, microcomputer control, WiFi monitoring. For sample storage, pharmaceutical, and research use.

Features

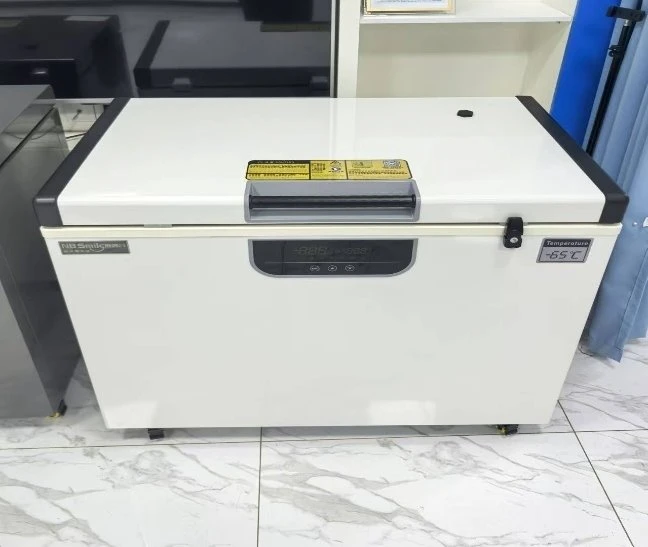

Medical & Laboratory Grade -85°C Chest Freezer for Critical Sample Storage



Laboratories, hospitals, pharmacies, and research institutions need ultra-low temperature storage they can trust with irreplaceable biological samples, vaccines, reagents, and pharmaceutical products. The HeCool -85°C Medical Grade Deep Chest Freezer delivers the temperature reliability, monitoring capability, and construction quality that these critical applications demand. The 304 stainless steel seamless interior provides the highest standard of internal hygiene, the microcomputer touch panel offers precise temperature programming, and the optional WiFi IoT module enables 24/7 remote monitoring with alarm notifications - so you know immediately if storage conditions deviate from your set parameters, even at 3 AM.



Key Features



• -85°C Ultra-Deep Cold Storage - Achieves and maintains -85°C for the long-term preservation of biological samples, vaccines, enzymes, and other temperature-critical materials.

• 304 Stainless Steel Interior - Medical-grade seamless one-piece interior liner with rounded corners for maximum hygiene and easy decontamination.

• 24/7 WiFi Remote Monitoring - Optional IoT system provides continuous remote temperature monitoring with configurable alarm thresholds and email/push notifications.

• Microcomputer Touch Panel - Large, intuitive touchscreen interface for temperature programming, alarm settings, and operational status display.

• Temperature Logging Capability - Stores historical temperature data for compliance documentation and audit trails.

product-648-547

• Quiet Operation for Clinical Settings - 48dB operating noise suitable for placement in laboratories, clinical areas, and near patient environments.

• Cascade Cooling System - Multi-stage mixed-refrigerant cascade system achieves -85°C efficiently and reliably.

• Huayi Compressor - Proven reliability for continuous operation in critical storage applications.

• Thick Insulation - High-density cyclopentane foam insulation maintains ultra-low temperatures during power interruptions for maximum sample protection.

• Five Capacity Options - From 111L for small labs to 575L for high-volume institutional storage requirements.



Technical Specifications



Model

Dimensions (mm)

Power

Net Weight

Packing Size (mm)

40ft Qty

HCS-85W111L

950×735×960

455W

93 kg

1005×750×1135

60 units

HCS-85W220L

1105×735×902

617W

109 kg

1150×785×1100

40 units

HCS-85W312L

1420×735×902

800W

125 kg

1465×785×1100

32 units

HCS-85W367L

1645×735×902

803W

100 kg

1685×785×1100

26 units

HCS-85W575L

2000×855×937

835W

157 kg

2045×855×1100

12 units

Cooling: Air-Cooled (Fan) | Refrigerant: R290 Eco-Friendly | Temp: 2-8°C | Voltage: 220V/50Hz (customizable)



Ideal Applications



Hospital laboratories, university research labs, pharmaceutical warehouses, blood banks, biotech companies, veterinary clinics, IVF clinics, and forensic laboratories.



Frequently Asked Questions

Q: How long will samples remain frozen during a power outage?

A: With the lid closed, the thick cyclopentane insulation maintains ultra-low temperatures for several hours depending on ambient conditions and fill level. For critical applications, we recommend UPS backup power systems.

Q: Does this meet WHO vaccine storage requirements?

A: The temperature range and monitoring capabilities align with WHO ultra-cold chain requirements. Specific compliance certification depends on your country's regulatory framework.



Why Choose HeCool?



HeCool (Zhejiang Hechuang Machinery Co., Ltd.) is a professional commercial refrigeration manufacturer headquartered in Huzhou, Zhejiang, China. With integrated R&D, manufacturing, and quality testing capabilities, HeCool delivers factory-direct pricing with full OEM/ODM customization services. All products undergo rigorous quality inspection before shipment and come with comprehensive after-sales technical support.



Contact our international sales team today for factory-direct pricing, OEM customization options, and flexible order quantities. We ship worldwide with professional crating and containerized logistics.
